Description

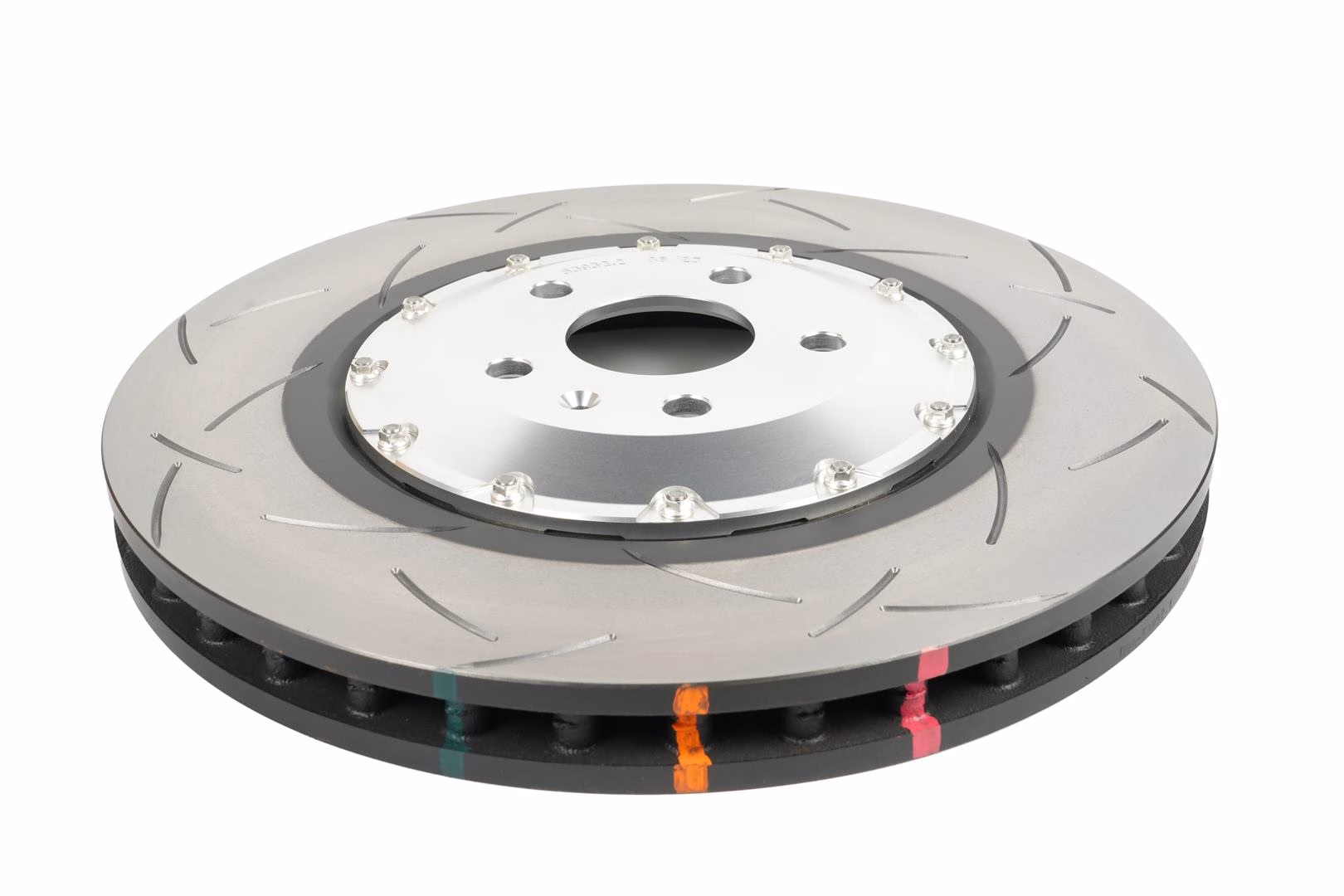

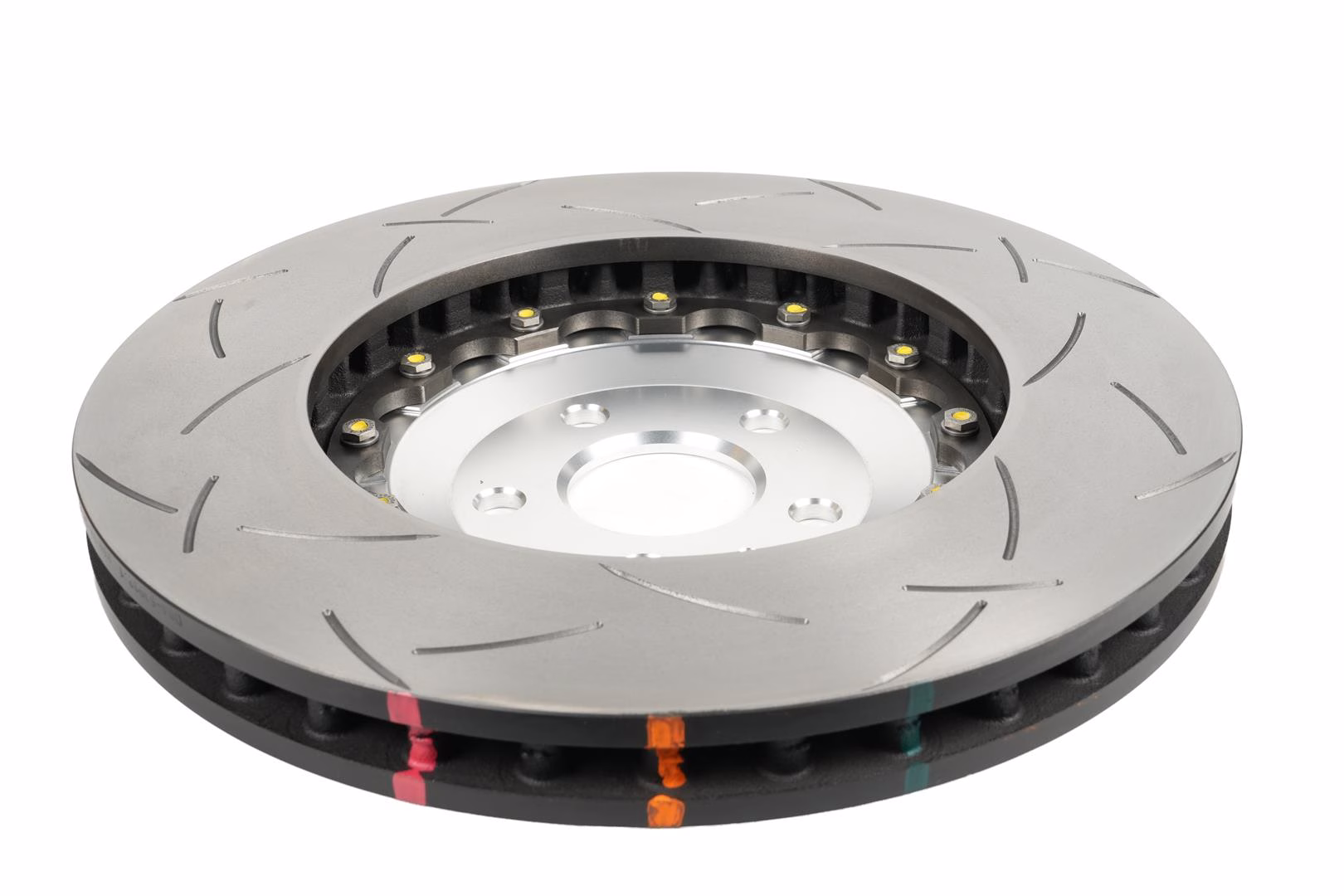

DBA 5000 Series discs are two-piece performance brake discs, pairing a lightweight billet aluminium hat with a high carbon alloyed iron disc ring to cut unsprung weight and manage heat under hard road and track use. Supplied as a pair (2 discs) for one axle.
Features & Benefits
- T3 Slot 48 precision CNC machined slots – Tri-Symmetrical curve slots dampens the vibration harmonics or noise – A quieter, responsive and smoother brake pedal feel
- Increased number of out-gassing exit points for brake pad friction gasses to escape through – Increases the consistency and effectiveness of every brake stop
- Universal slot design – Eliminates the need for left and right discs
- Kangaroo Paw – 144 diamond and tear drop pillar ventilation system – Increased surface area resulting in greater heat dissipation – Minimises brake fade and increases braking effectiveness
- Increased surface area resulting in greater heat dissipation – Prolongs service life for both pads and discs. Reduces mechanical damage and associated costs
- XG150 High Carbon Alloyed Iron – An increase in thermal capacity property allows the disc to handle constant extremes of heat over extended periods of time – Minimises warping and cracking and prolongs the service life of the disc
- Thermal Stability Profiling – Special formulation designed to respond to DBA’s TSP process – Minimises warping and cracking and prolongs the service life of the disc
- Thermographic Temperature Monitoring – Heat paint markings change colour at specific temperature thresholds – Offers the driver a clear indication of peak braking temperatures
- When temperature thresholds are exceeded paint markings will permanently change colours – Allows the driver to monitor disc fatigue and decide on disc replacement and to assist resellers with warranty claims
- Paint protection on non-friction areas – Reduces corrosion – Stops any unsightly rust formation
- Enhances appearance – Adds value to the product
Specifications
- Diameter (mm): 374
- Thickness (mm): 36
- Minimum Thickness (mm): 34
- Height (mm): 50
- Number of Holes: 5
- Inner Diameter (mm): 65
- Disc Vent: Kangaroo Paw
- Stage: Stage 5
- Axle: Front
- Type / Series: 5000 Series T3 Slotted
Vehicle Fitment
- Audi RS3 8Y 2.5 Turbo 400BHP (2021-2024) (Front) – Brake Caliper: Akebono; for PR: 1LF, 1LH
- Audi RS3 8Y 2.5 Turbo 400BHP (2025-) (Front) – Brake Caliper: Akebono; for PR: 1LF, 1LH
- Audi RSQ3 F3 2.5 Turbo 400BHP (2019-) (Front) – Brake Caliper: Akebono
- Cupra Formentor 2.5 Turbo VZ5 390BHP (2022-) (Front) – Brake Caliper: Akebono; for PR: 1LF
Fits: Audi RS Q3 F3/RS3 8Y / Cupra Formentor VZ
Part No.: DBA53932SLVS (x2)
